OmArm One: ROS 2 Workspace – Digital Twin, ros2_control & MoveIt 2 on Real Hardware, 2 PDF Guides (Parts 2 + 3)

Description

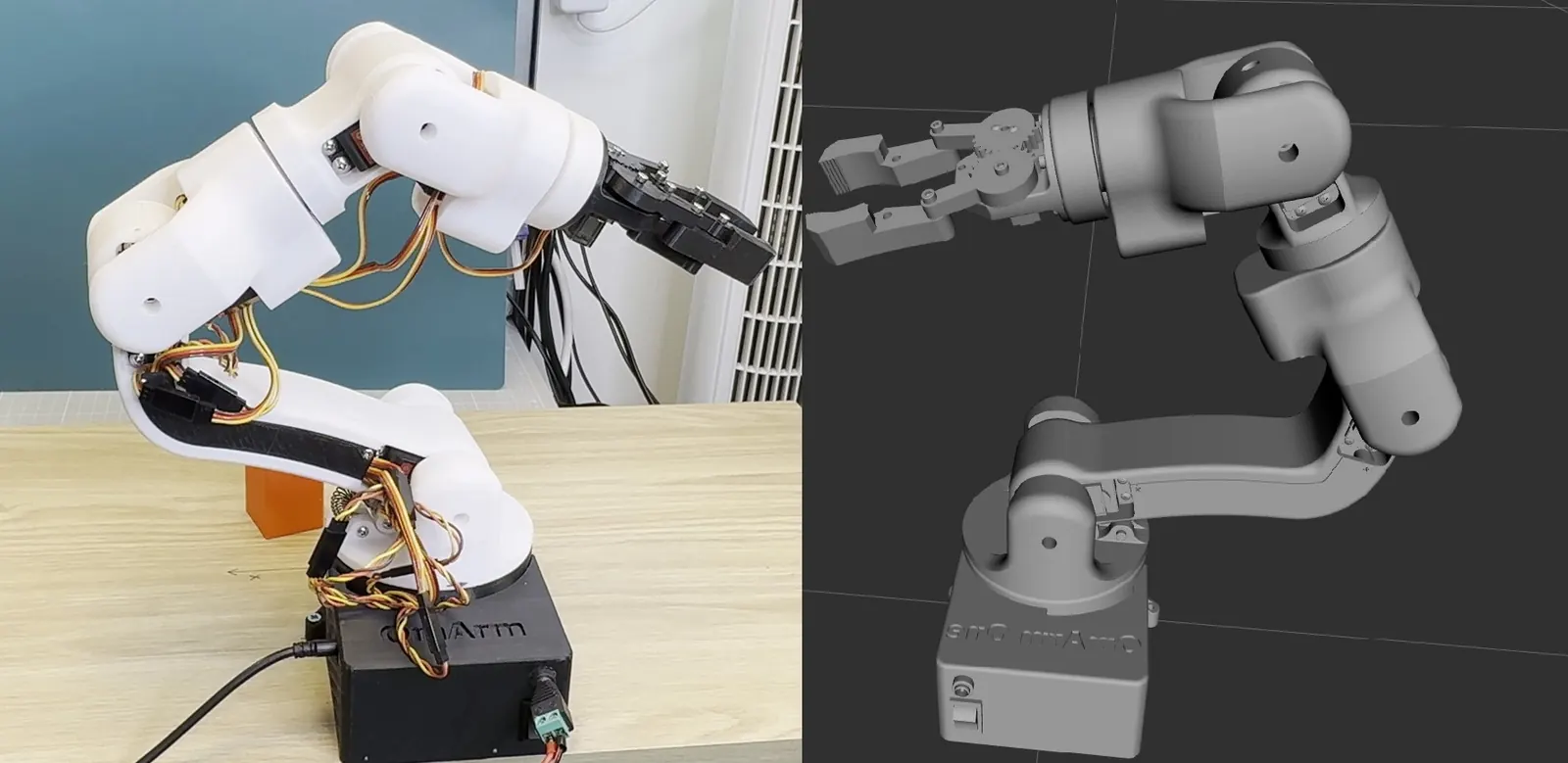

The OmArm One in ROS 2, from a model that matches the real arm to MoveIt 2 planning a pose and the real servos executing it. This package is the complete workspace from Parts 2 and 3 of the OmArm One series: the corrected URDF/xacro description with all twelve meshes, the ros2_control hardware driver that talks to the ESP32 over one USB cable, the MoveIt 2 configuration package, the Gazebo Harmonic simulation, the ESP32 firmware with its PC-side unit tests, the operator and calibration scripts, a 13-chapter workspace book, and both written guides as PDFs (48 + 57 pages). The model is not the raw CAD export: joint directions, zero positions and limits were measured and corrected against the built arm, and the guides show every change with the arithmetic behind it.

What’s included

omarm_one_ws — the ROS 2 workspace

• omarm_description: the calibrated model. omarm.xacro with 13 links and 12 joints, 12 STL meshes, RViz and Gazebo launch files, and the one xacro argument (use_sim) that switches the same model between the Gazebo plugin and the serial driver
• omarm_hardware: the ros2_control driver in C++. Handshake with the firmware, position adoption at start-up so the first commanded motion is zero, whole-trajectory upload instead of streaming, emergency stop and resume
• omarm_moveit_config: the MoveIt 2 package generated with the Setup Assistant and then corrected by hand: SRDF with 42 collision pairs disabled, planning groups omarm_arm and omarm_gripper, named poses, KDL kinematics, joint limits, controllers, launch files for RViz, Gazebo and the real arm
• omarm_simulation: Gazebo Harmonic world, ros_gz bridge configuration and demo nodes
• esp32_firmware/omarm_one_ros2_serial: the firmware you flash. Serial protocol, 250 Hz motion core, trajectory follower with spline checks between the waypoints, latched emergency stop, position confirmation after a power cycle. Three PC-side tests (189 checks) compile with g++, no board needed
• tools/: start, stop and restart the whole stack, jog a joint, move to a pose, capture the zero pose, calibrate a joint, doctor.sh for diagnosis, and check_description.py, the URDF audit script from Part 2
• docs/: the workspace book, 13 chapters from theory to troubleshooting, built from real failures

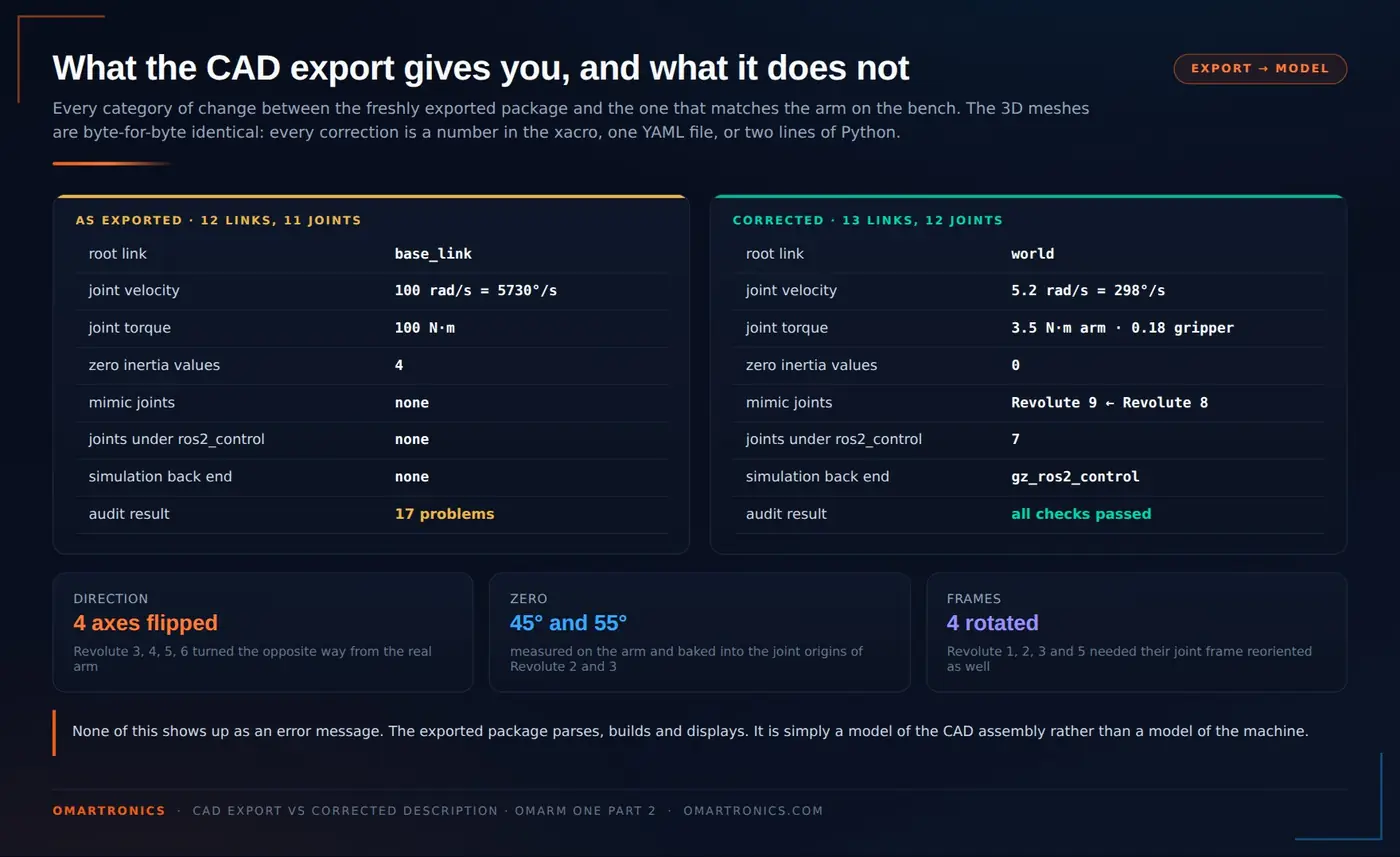

• The raw CAD export, kept beside the corrected model so you can diff the two. The audit script finds 17 problems in it and none in the shipped model

OmArm-One-Digital-Twin-Guide.pdf — Part 2, 48 pages

• What a digital twin is, ROS 2 and URDF in the length you actually need
• Preparing the CAD in Fusion 360 and running the free URDF exporter, step by step with screenshots
• Reading the export critically: the seventeen problems, what each one does in RViz and Gazebo, and the fix
• Matching the model to the machine: reversed axes, measured zero offsets, the arithmetic that puts them into the geometry
• RViz, Gazebo, activating the controllers, sending a trajectory, verifying the twin against the real arm

OmArm-One-MoveIt-ros2control-Guide.pdf — Part 3, 57 pages

• Every way a CAD export disagrees with the built arm, and the ruler-and-afternoon audit that finds each one
• What a ros2_control controller is, the controller manager’s read-update-write cycle, the three controllers on this arm
• Forward kinematics, Denavit-Hartenberg parameters derived from the URDF, and the closed-form inverse kinematics of the 6R wrist with all eight solutions
• Why MoveIt uses a numerical solver anyway, and what trajectory planning adds on top of IK
• Every screen of the MoveIt Setup Assistant, including the one that refuses the obvious end effector parent link
• From a MoveIt trajectory to a servo pulse: the driver, the serial protocol, the firmware gate, and the first run on the real arm
• Troubleshooting from real debugging sessions, FAQ

The model

• 13 links, 12 joints: six revolute arm joints, a five-joint gripper with one motor, and a fixed joint that bolts the base to the world
• Arm joints 0 to 180 degrees, velocity 5.2 rad/s and effort 3.5 N·m, matched to the DS3240-180 servo at 5 V
• Gripper: Revolute 8 driven 0 to 1.6 rad, Revolute 9 mimics it, fingers rigid
• Controllers: joint_state_broadcaster, omarm_arm_controller and omarm_gripper_controller (joint trajectory controllers), the same names in simulation and on the real arm
• Firmware limits: 120 trajectory points, 200 °/s hard velocity limit, spline checked at 32 steps between waypoints, 250 Hz servo update

Requirements

• Ubuntu 24.04 with ROS 2 Jazzy (on Windows: WSL 2), MoveIt 2, ros2_control, colcon, xacro. The exact apt line is in the workspace book
• For the simulation: Gazebo Harmonic via ros-jazzy-ros-gz and ros-jazzy-gz-ros2-control
• For the real arm: the OmArm One from Part 1 with its ESP32 and PCA9685, the Arduino IDE with the Adafruit PWM Servo Driver library. Everything up to that point runs without hardware

Quick start

Unzip the download, copy omarm_one_ws to your home folder, then:

cd ~/omarm_one_ws
colcon build
source install/setup.bash
ros2 launch omarm_moveit_config demo.launch.py

RViz opens with MoveIt. Drag the marker on the gripper, press Plan, and the orange ghost walks the trajectory before anything moves. display.launch.py shows the model with sliders, gazebo.launch.py starts the physics simulation, and tools/restart_hardware.sh brings up the stack against the real arm. The README and the workspace book list every command.

Good to know

The servos have no position feedback, so after a power-up the firmware asks you to confirm the arm’s pose once before it moves (one service call, shown in the README). An emergency stop service is included and the driver releases it automatically on the next start.

Part of a series

Part 1 built the arm, Part 1.5 added a game controller, Part 2 built the digital twin, Part 3 brings ros2_control down to the real hardware and adds MoveIt 2 motion planning. This download covers Parts 2 and 3; it replaces the Part 2 package, and buyers of the Part 2 package get the update from the same product. Part 4 adds a camera.

Part 3 written guide: https://omartronics.com/moveit-2-ros2-control-robot-arm-inverse-kinematics/
Part 3 video: https://youtu.be/Gzo9G1A3wVw
Part 2 written guide: https://omartronics.com/fusion-360-urdf-ros2-digital-twin-rviz-gazebo/
Part 2 video: https://youtu.be/Auccq-NI4vI

License

The ROS 2 code and the ESP32 firmware are MIT-licensed; the same source is published on GitHub, and that public copy is the one to fork and share. The STL meshes and the two PDF guides are for personal, non-commercial use only. Redistribution, resale or sharing of the files, original or modified, is not permitted.
